Easily Seals These Typical Case Styles
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

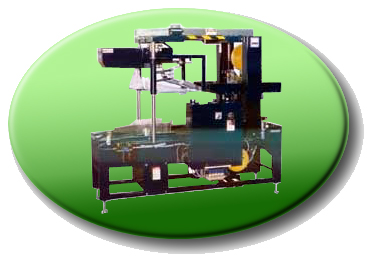

Model T-600 Case Sealer
|
|
RSC
|
FTHS
|
|
|
|
|
|
|
|
|
|
|
|
Video
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(Regular Slotted
Container)
|
(Full Telescoping Half
Slotted Container)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
In today's fast-paced world, Sims Case Sealers are the smart choice
for your packing and shipping needs. When a high performance case sealer
is a must, the Sims Model 600 Uniform Automatic Case Sealing Machine
excels in performance.
Proven reliable, the Model 600 is specially designed for both light
and heavy industrial applications. The sturdy welded construction ensures
strength and durability. It is the perfect choice for a demanding line
requiring flexibility and intelligence.
The SimsCase Sealing Machine can seal nearly any package regardless
of size and form. Intelligent features of the Model 600 help maximize
the sealer's performance so that a quick, professional and secure seal
is applied every time.
The Sims Case Sealing Machine can meet your most demanding requirements.
It will prove its worth in your plant.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Download the Case Sealer Questionnaire
|
|
|
|
|
Features and Advantages:
|
|
|
|
|
|
|
- User friendly
- Easy and fast loading
- Uniform automatic sealer
- Accepts New Euro Footprint Cases
- Automatic case centering and indexing
- Patented SIMS tape heads - 2" or 3"
- Automatic case counting and indexing
- Speeds up to 30 cases per minute
- Belt drive conveyor
- Adjustable pneumatic compression while taping
- Pneumatic side rollers for squaring top flaps
- Lid lifter for over filled cartons
- Programmable logic controller
- Fault detection and warning light
- Operator control panel available on either side
- Emergency stop switches on both sides
- Top and/or bottom taping
- Minor maintenance requiring less down time
- Installation and service video included
- Machine may be operated as top & bottom, top only, or bottom only
sealer
- Options: Hot Melt or Tape Closure for tape flaps only
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Specifications: |
|
|
|
|
|
|
|
|
|
DIMENSIONS: 80" long x 42" wide x
72" high
CONVEYOR HEIGHT: 26" minimum 32" maximum
CONSTRUCTION: |
|
|
|
|
|
|
|
|
|
Extra strength welded and painted tubular steel for durability
Painted or stainless
|
|
|
|
|
|
|
|
|
|
ELECTRICAL: 208/230/480V, 60 HZ, 3 phase
CONTROL LOGIC: Programmable logic controller
MOTOR: 3/4 HP
AIR REQUIREMENTS: 7 C.F.M
TAPE HEAD: Sims Patented Tape Head
TAPE WIDTH: 2" standard, 3" optional
TAPE ROLL: Maximum diameter 14"
BELT SPEED: 125 feet per minute is standard
CASE SPEEDS: 20 to 30 cases per minute
CASE SIZE CAPACITY: |
|
|
|
|
|
|
|
|
|
Minimum 14" L x 11" W x 6" H
Maximum 22" L x 16" W x 15" H
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
