         Easily Seals These Typical Case Styles
       |
       |
       |
       |
       |


       |
        |
        |
       |
       |
       |
       |
       |


       |

          RSC
       |

         FTHS
       |
       |
       |
       |
       |
       |


      |

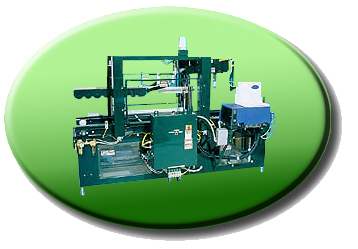

         Model G-950 Random Case Sealer
       |
       |
       |
       |
       |
       |


       |

         Video
       |
       |
       |


      |
          (Regular Slotted
          Container)
       |

         Full Telescoping (Half
          Slotted Container)
       |
       |
       |
       |


       |
       |
       |
       |
       |
       |
       |
       |
       |


       |
       |
       |
       |
       |
       |
       |
       |
       |
       |
       |




       |


       |
       |

         In today's fast-paced world, Sims Case Sealers are the smart choice
          for your packing and shipping needs. When a high performance case sealer
          is a must, the Sims Model 950 Automatic Random Case Sealing Machine
          excels in performance.
          Proven reliable, the Model 950 is specially designed for both light
          and heavy industrial applications. The sturdy welded construction ensures
          strength and durability. It is the perfect choice for a demanding line
          requiring flexibility and intelligence.
        The SimsCase Sealing Machine can seal nearly any package regardless
          of size and form. Intelligent features of the Model 950 help maximize
          the sealer's performance so that a quick, professional and secure seal
          is applied every time.
        The Sims Hot Melt Case Sealing Machine can meet your most demanding
          requirements. It will prove its worth in your plant.
       |
       |




       |


       |
       |
       |
       |
       |
       |
       |
       |
       |
       |

         Download the Case Sealer Questionnaire
       |
       |
       |


       |
       |
      Features and Advantages:
         |
       |
       |
       |


       |
       |
       |


          - Fully automatic random sealer

            Hot Melt Top & Bottom
            Speeds up to 16 to 20 cases per minute in random mode
            Draw bar driven
            Adjustable pnuematic compression while glueing
            Self centering lid lifter for over filled cartons
            Automatic indexing
            Programmable logic controller
            Operator control panel available on either side
            Emergency stop switches on both sides
            Minor maintenance requiring less down time
            Installation and service video included
            OPTIONS: Hot Melt or Tape Closure

       |
       |
       |
       |


       |
       |
       |
        |
       |


       |
       |
       |
       |
       |
       |
       |
       |
       |


       |
       |
       |
      Specifications: |
       |
       |
       |
       |
       |
       |


       |
       |
       |
      DIMENSIONS: 94" long x 47" wide x
        75" high
        CONVEYOR HEIGHT: 24" minimum 33" maximum
        CONSTRUCTION:  |
       |
       |
       |
       |
       |
       |


       |
       |
       |

         Extra strength welded tubing and 11 Guage Metal Painted or
          Stainless
       |
       |
       |
       |
       |
       |
       |


       |
       |
       |
      ELECTRICAL: 208/230/480V, 60 HZ, 3 phase
        CONTROL LOGIC: Programmable logic controller
        MOTOR: 3/4 HP
        AIR REQUIREMENTS: 7 C.F.M
        TAPE HEAD: Sims Patented Tape Head
        TAPE WIDTH: 2" standard, 3" optional
        TAPE ROLL: Maximum diameter 14"
        BELT SPEED: 120 feet per minute is standard
        CASE SPEEDS: 16-20 cases per minute
        CASE SIZE CAPACITY:  |
       |
       |
       |
       |
       |
       |


       |
       |
       |


          Minimum 14" L x 11" W x 6" H
            Maximum 22" L x 16" W x 15" H

       |
       |
       |
       |
       |
       |
       |


       |
       |
       |
       |
       |
       |
       |
       |
       |
       |
       |


      |

       |


       |
